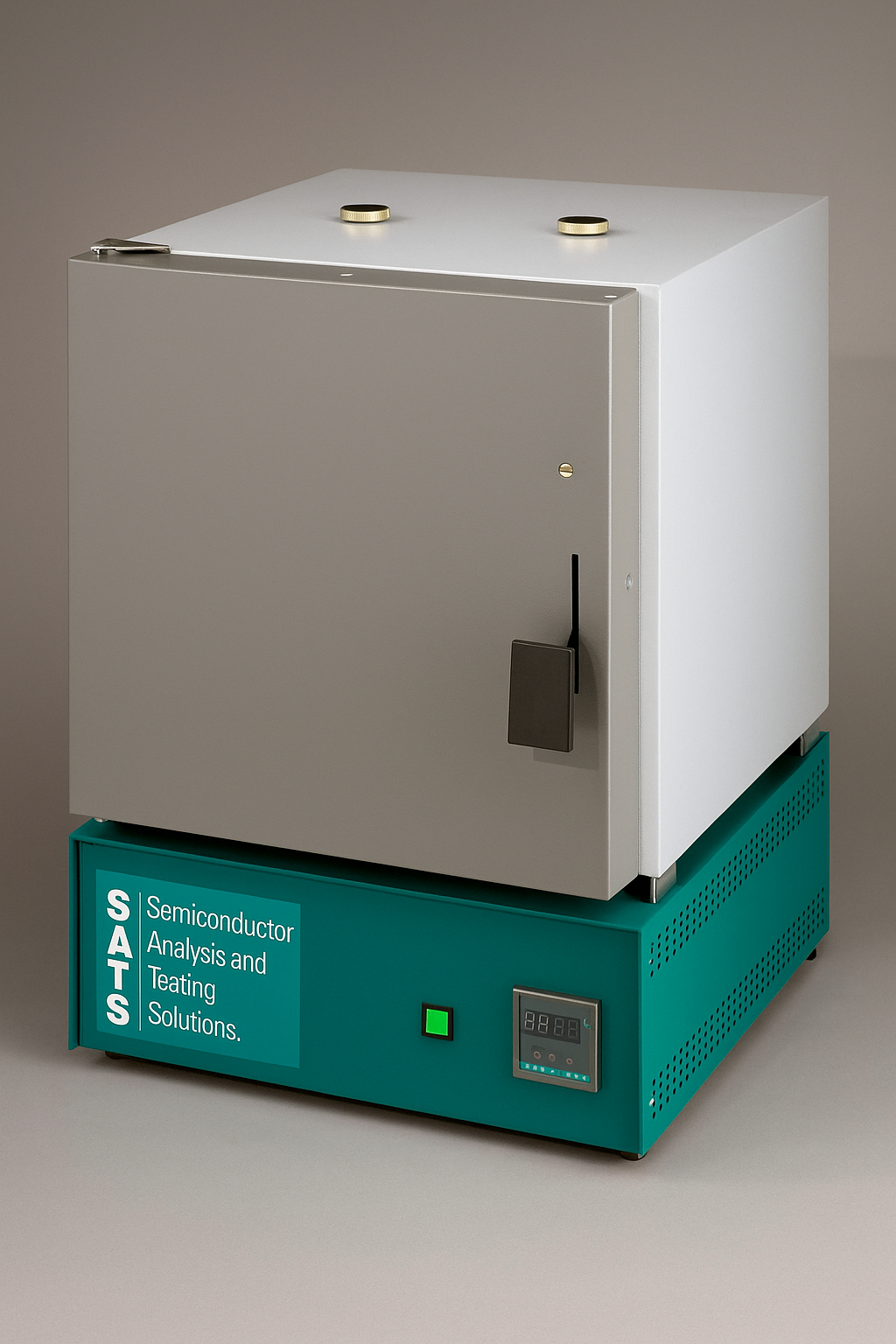

Muffle Furnace
The SATs Muffle Furnace is designed for high-temperature material testing, heat treatment, sintering, and analytical research applications. Built with advanced insulation and intelligent control systems, it ensures precise and consistent heating for laboratory and industrial use.
Technical Specifications
Temperature Range
Operates from ambient to 800°C / 1000°C / 1200°C / 1400°C / 1500°C, depending on the model configuration, suitable for a wide range of high-temperature applications.
Temperature Accuracy
Offers high accuracy of ±1°C, ensuring consistent and reliable temperature control during thermal experiments.
Heating Element
Equipped with premium-grade Kanthal, Silicon Carbide (SiC), or Molybdenum Disilicide (MoSi₂) heating elements based on the operating temperature range, providing durability and efficiency.
Temperature Control
Advanced PID microprocessor-based controller for precise temperature regulation, optimized stability, and smooth thermal transitions.
Heating Rate
Capable of achieving heating rates up to 30°C per minute, enabling rapid thermal response and experimental efficiency.
Chamber Volume
Available in volumes ranging from 1 to 20 liters, with customizable chamber sizes to meet specific laboratory or industrial requirements.
Temperature Uniformity
Maintains uniform temperature distribution within ±3°C across the chamber for reproducible results and accurate material processing.
Display
Integrated digital LED or touchscreen interface (optional) for real-time temperature monitoring and user-friendly operation.
Power Supply
Operates on 230V / 50Hz single-phase or 415V / 50Hz three-phase power supply, depending on the model and capacity requirements.
Safety Features
Includes over-temperature protection and a door interlock system for enhanced operator safety and equipment reliability.
Applications
Materials and Metallurgical Research – Designed for evaluating thermal, structural, and mechanical behavior of metals, ceramics, and advanced materials.
Ceramic and Composite Sintering – Ideal for densification and sintering of ceramic and composite materials at controlled high temperatures.
Thermal Stability and Oxidation Studies – Facilitates precise examination of oxidation resistance and degradation behavior of materials under thermal stress.
Ash Content Determination – Used for determining ash content in various materials, particularly in analytical and quality control laboratories.
Heat Treatment of Metals and Alloys – Supports annealing, tempering, and other heat treatment processes essential for metallurgical applications.
